Automatically generating nice graphs at end of your Load Test with Apache JMeter and JMeter-Plugins

0saves

Context

You are using Apache JMeter for your Load Tests.

Once test has ended, you would like your favorite tool to automatically generate for you nice and meaningful graphs so that you can faster analyze your test results and include them in your report.

Apache JMeter is great in many ways but its core lacks this built-in feature, but it’s plugin Architecture will let us add it easily.
Hopefully a great must have Open Source and free third-party library called JMeter-Plugins comes to the rescue.

Before version 1.1.3 of JMeter-Plugins, you could use JMeterPluginsCMD Command Line Tool to generate your graphs in a shell, but this was not optimal.

As users of both Apache JMeter and JMeter-Plugins, we decided to contribute this new feature to JMeter-Plugins.

Our philosophy is :

  • “If you use an Open-Source and free project, be grateful, always contribute in a way”

Feature Overview

To automatically generate your reports just add a new Listener called “jp@gc Graphs Generator“.

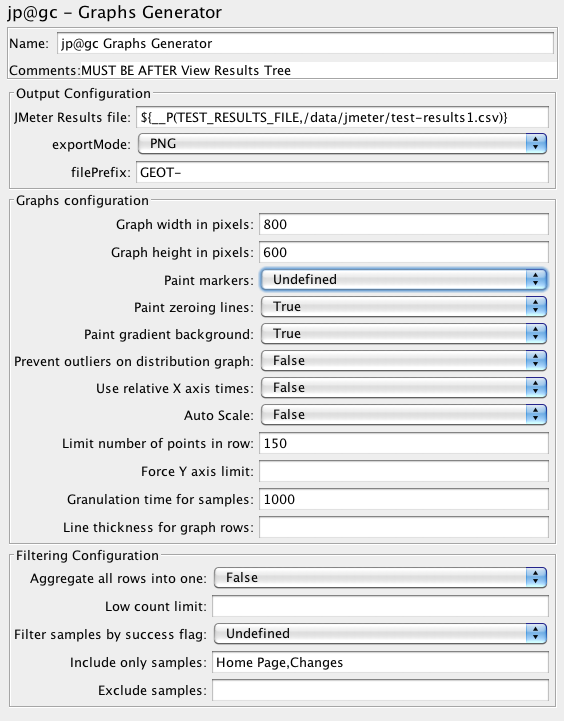

GGLP

































You can define the following properties:

Property Description/Possible Values
Graph width in pixels
for PNG only – width of the image, default is 800
Graph height in pixels for PNG only – height of the image, default is 600
granulation time for samples
granulation time for samples
relative-times <true/false> use relative X axis times, no will set absolute times
Aggregate all Rows into one
True/False
Paint gradient background
True/False
Paint markers
paint markers
Paint zeroing lines
paint zeroing lines
paint-markers <yes/no> paint markers on data points (since 1.1.3)
prevent-outliers <yes/no> prevent outliers on distribution graph
Limit number of points in row
limit number of points in row
Force Y axis limit Force input value as Y axis limit
Low count limit
hide points with sample count below input limit
success-filter <true/false/Undefined> filter samples by success flag (since 0.5.6), possible values are:

  • true: Only successful samples will be graphed
  • false : Only failing samples will be graphed
  • Undefined means no filtering on success flag will occur.
Include only samples Comma-separated list of samples to be graphed
Exclude samples Exclude from report samples with specified labels, comma-separated
Auto-Scale
enable/disable auto-scale multipliers for perfmon/composite graph
line thickness for graph rows line thickness for graph rows

JMeter Setup:

JMeter-Plugin installation:

  • Use JMeter version >= 2.10
  • Download extras bundle and unzip it, copy lib/ext/JMeterPlugins-Extras.jar to <jmeter home>/lib/ext.
  • Restart jmeter.

JMeter Configuration:

Edit <jmeter home>/bin/user.properties and ensure you set these properties:

jmeter.save.saveservice.output_format=csv
jmeter.save.saveservice.data_type=false
jmeter.save.saveservice.label=true
jmeter.save.saveservice.response_code=true
jmeter.save.saveservice.response_data.on_error=false
jmeter.save.saveservice.response_message=false
jmeter.save.saveservice.assertion_results_failure_message=false
jmeter.save.saveservice.successful=true
jmeter.save.saveservice.thread_name=true
jmeter.save.saveservice.time=true
jmeter.save.saveservice.subresults=false
jmeter.save.saveservice.assertions=true
jmeter.save.saveservice.latency=true
jmeter.save.saveservice.bytes=true
jmeter.save.saveservice.hostname=true

# This will enable correct graphs display
# which deal with threads after reloading the results file.
jmeter.save.saveservice.thread_counts=true

jmeter.save.saveservice.sample_count=true
jmeter.save.saveservice.timestamp_format=HH:mm:ss
jmeter.save.saveservice.default_delimiter=;
jmeter.save.saveservice.print_field_names=true
# This is needed to ensure all results are
# available when Listener runs
jmeter.save.saveservice.autoflush=true

Test Plan setup:

If using distributed testing, ensure you add to your Thread Group names:

${__machineName()}_My Threadgroup name

Test Plan example:

We will use a test plan you can easily create with Templates…> Building a Web Test Plan

We just added an Http Cookie Manager and removed Graph Results listener.

We end up with this, the only listener is the new jp@gc Graphs Generator

GG-TestPlan

Let’s run plan:

Now run this plan in NON-GUI mode as per JMeter Best-Practices using following command-line:

./jmeter -t GraphsReportListener-GenerationAtEndOfTestNonGUI.jmx -n
  -l /data/jmeter/test-results.csv
 -JTEST_RESULTS_FILE=/data/jmeter/test-results.csv

Notice the following:

  1. -t GraphsReportListener-GenerationAtEndOfTestNonGUI.jmx : Means use following jmx file GraphsReportListener-GenerationAtEndOfTestNonGUI.jmx
  2. -n : Means NON GUI
  3. -l /data/jmeter/test-results.csv : Means output results in following file
  4. -JTEST_RESULTS_FILE=/data/jmeter/test-results.csv : Notice we set the same value as output file in 3). We set this because in “jp@gc Graphs Generator” we have used __P function in JMeter to replace TEST_RESULTS_FILE by the value we input in -J:
    • ${__P(TEST_RESULTS_FILE,/data/jmeter/test-results.csv)}

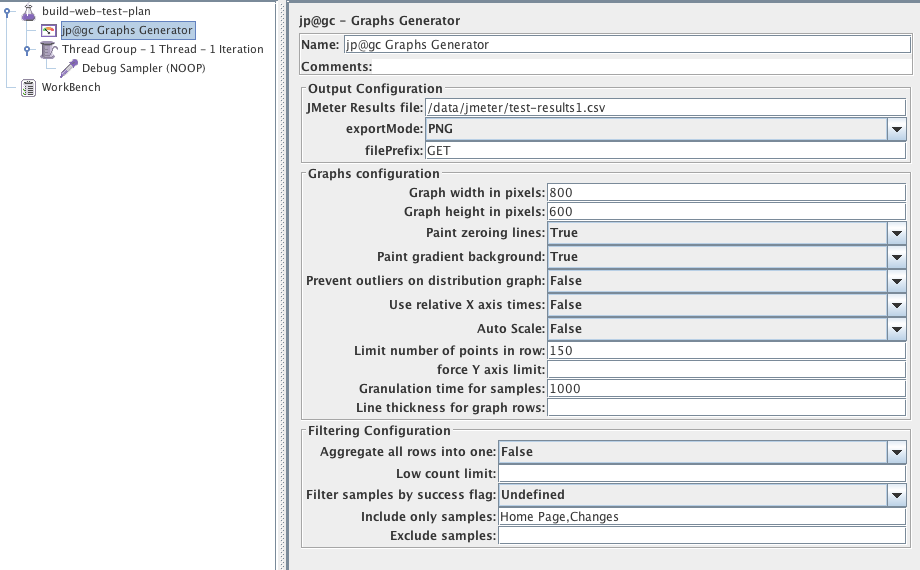

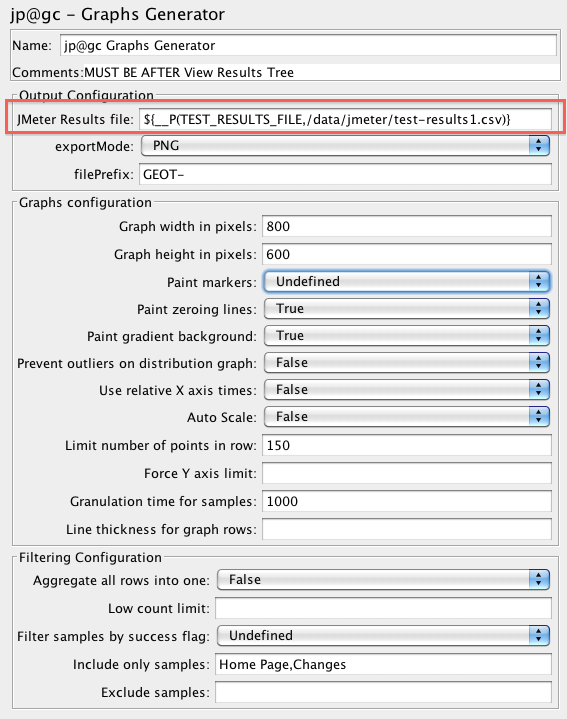

    GGLP-highlighted



In this configuration, notice we have decided to only include 2 samples:

  • Home Page
  • Changes

In a real worl scenario, you would use Transaction Controller for meaningful transaction names and only include those in your report.

Results:

At end of test JMeter automatically generated in <jmeter home>/bin folder the following files:

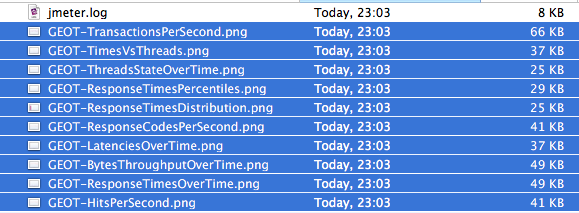

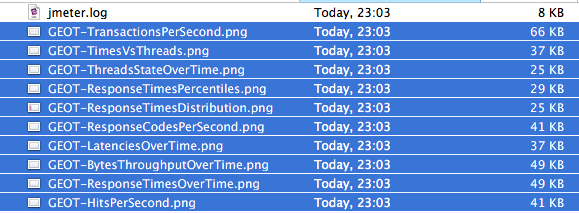

Graph-Files



Graphs:

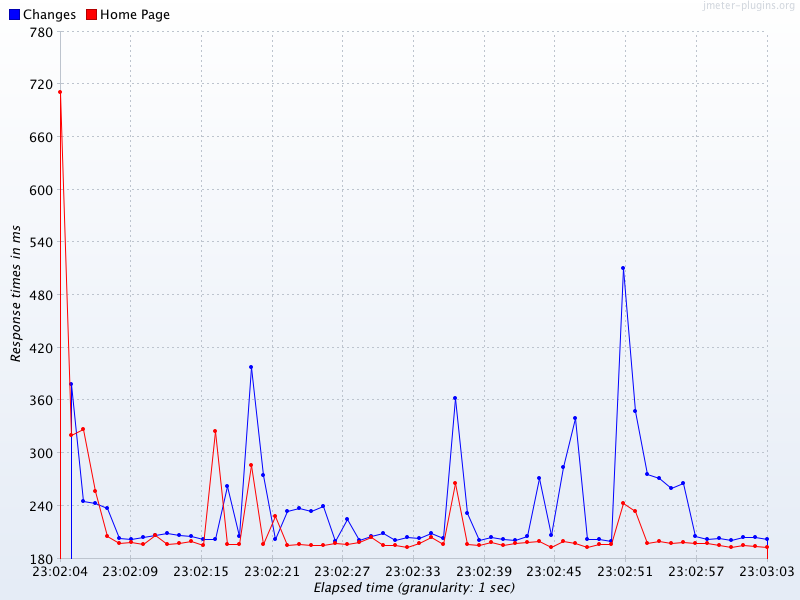

Response Times over time:

GEOT-ResponseTimesOverTime

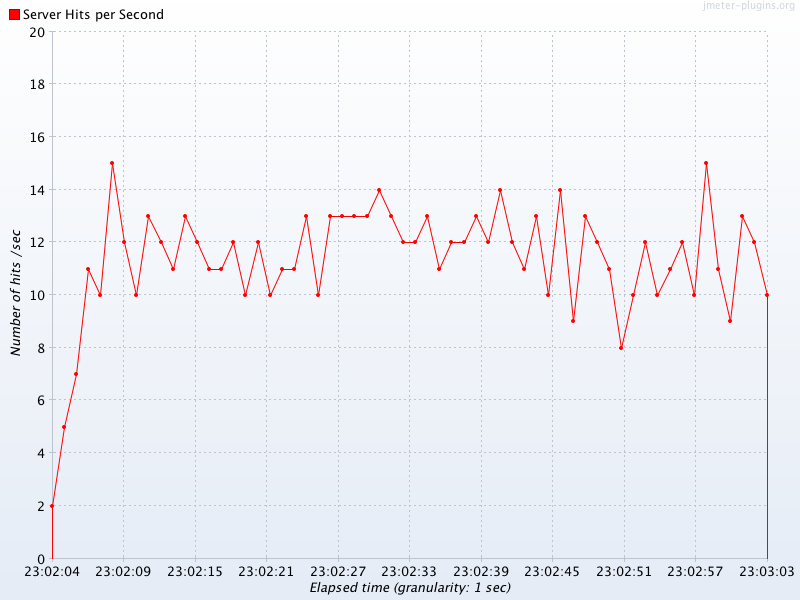

Hits Per Second:

GEOT-HitsPerSecond

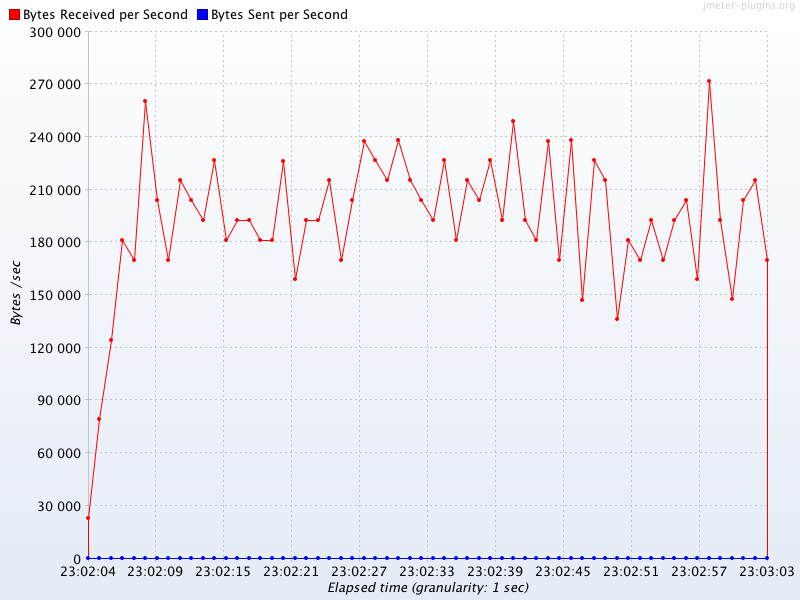

Bytes throughput over time:

GEOT-BytesThroughputOverTime

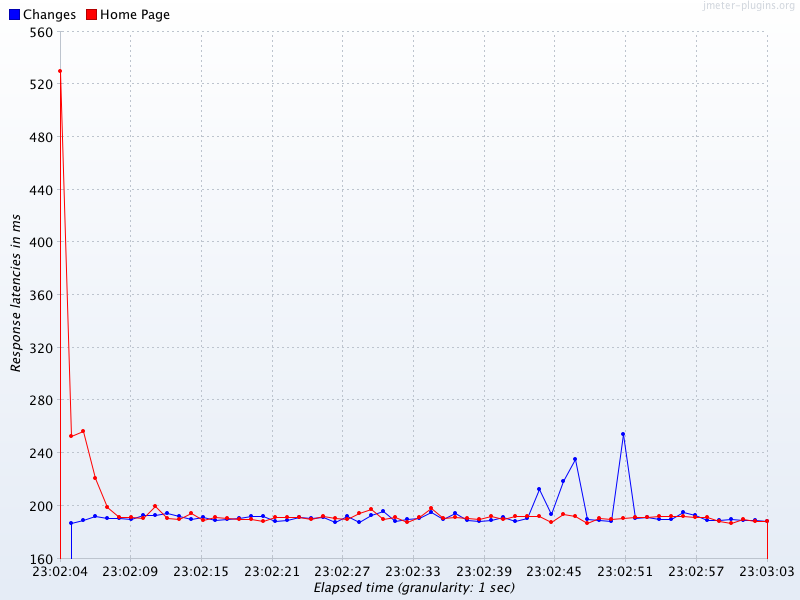

Latencies over time:

GEOT-LatenciesOverTime

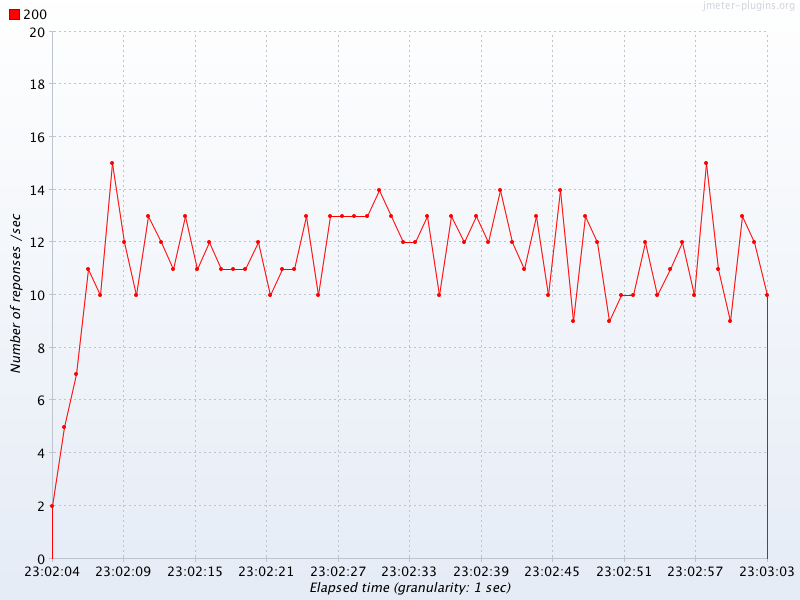

Response codes per second:

GEOT-ResponseCodesPerSecond

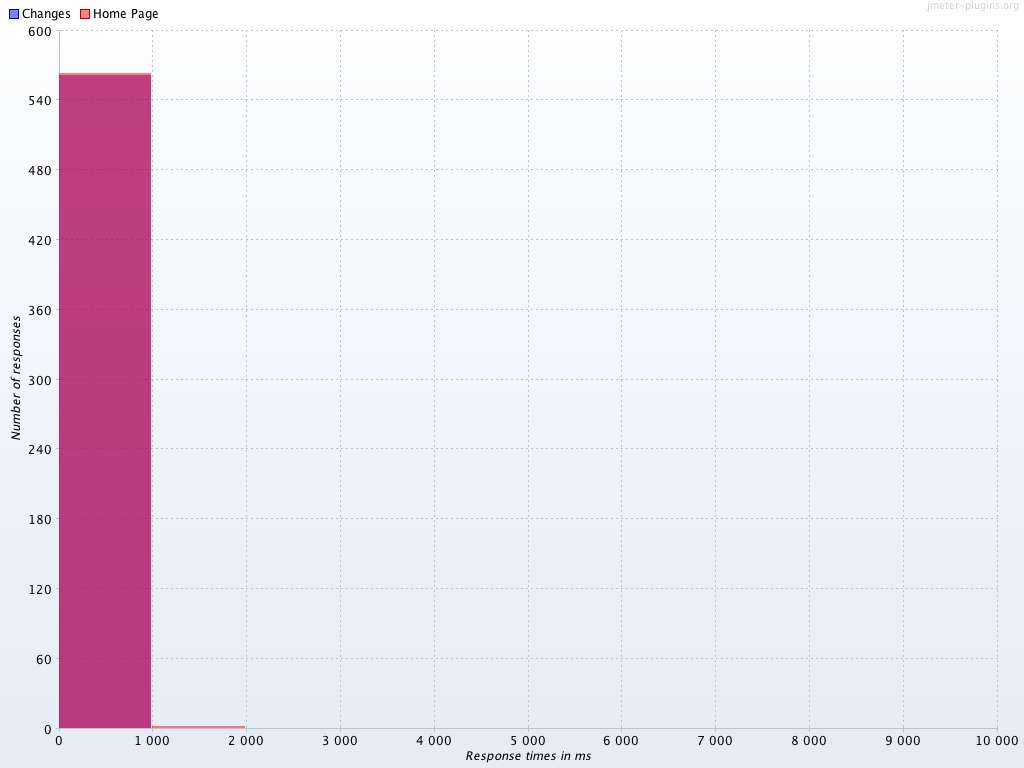

Response times distribution:

GETResponseTimesDistribution

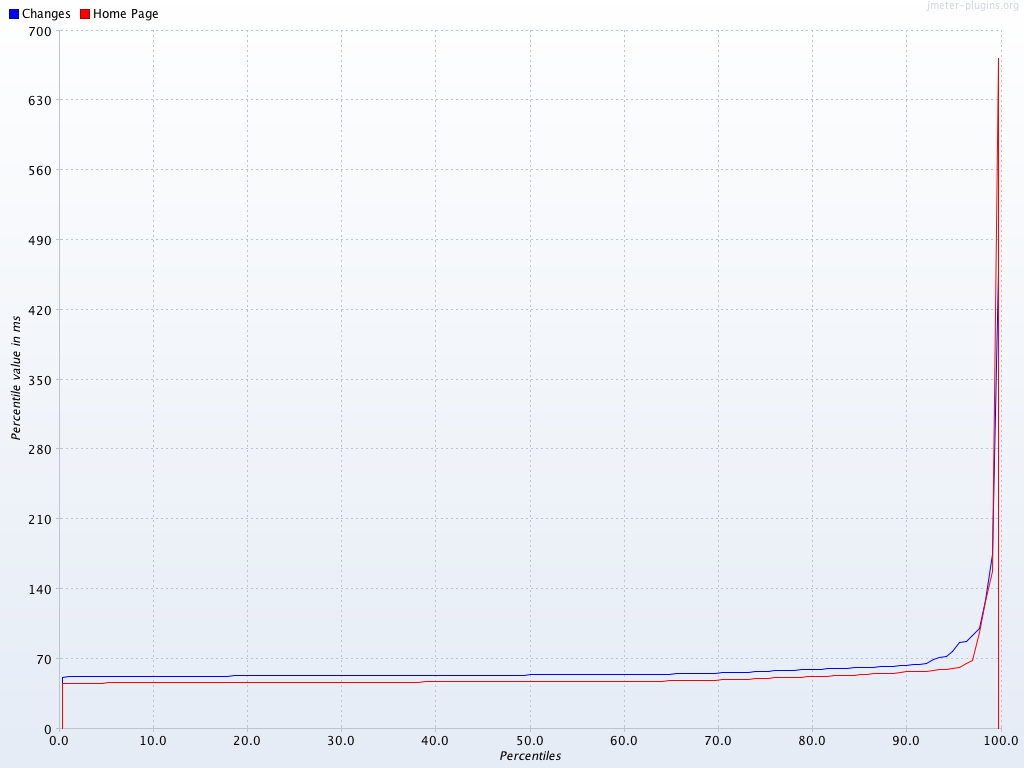

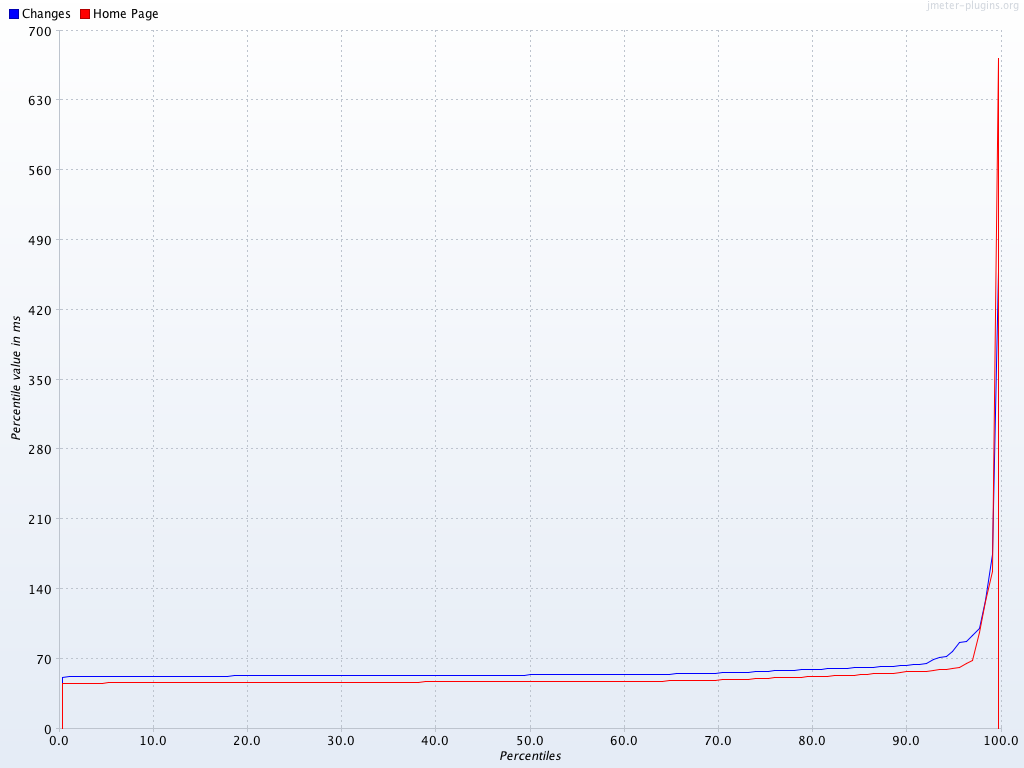

Response times percentiles:

GETResponseTimesPercentiles

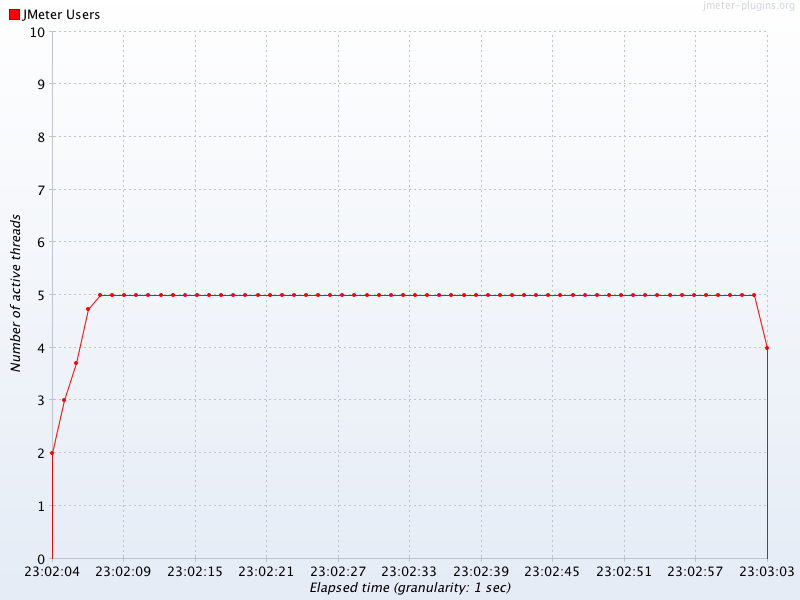

Threads state over time:

GEOT-ThreadsStateOverTime

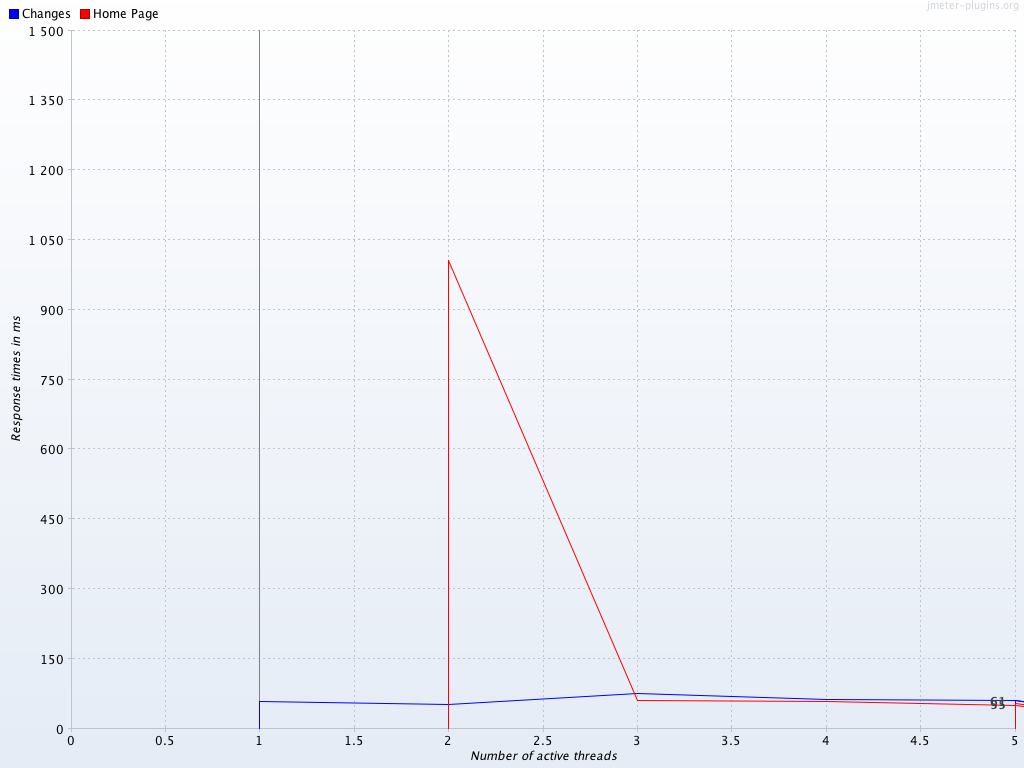

Time vs Threads:

GETTimesVsThreads

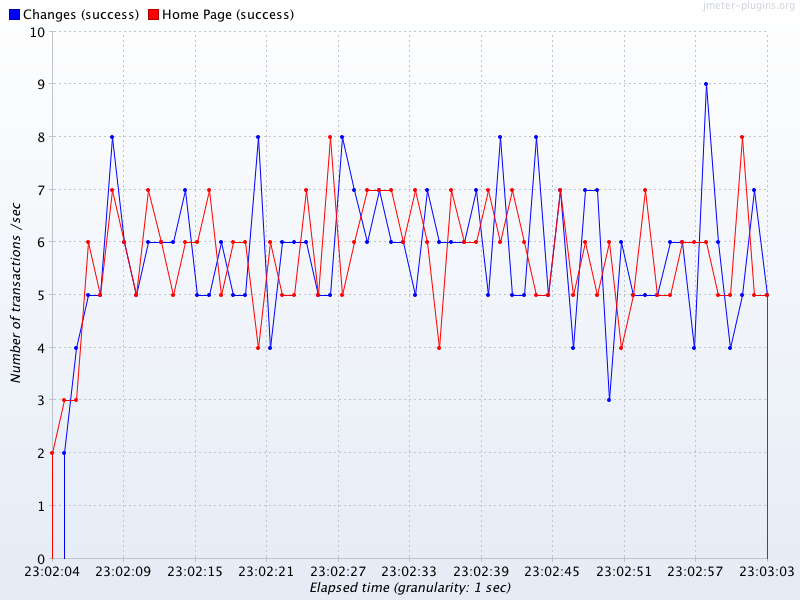

Transactions per second:

GEOT-TransactionsPerSecond

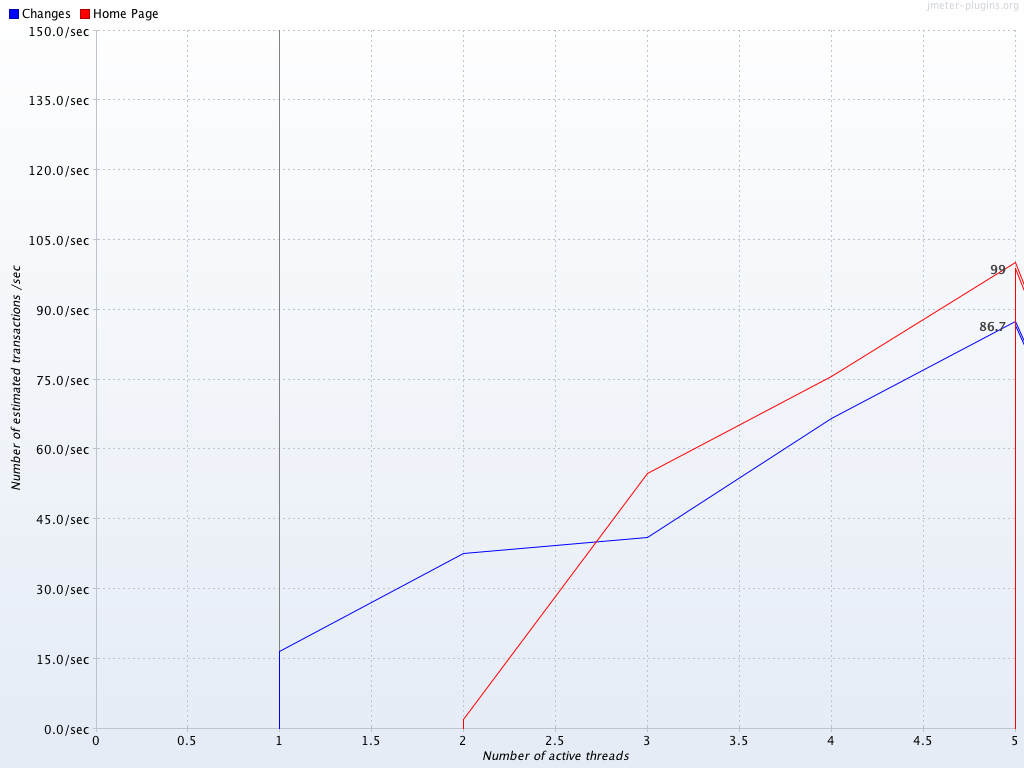

Throughput vs Threads:

GETThroughputVsThreads

Other Features

Graphs Generator Listener can also generate CSV files besides PNG files.

Graph Generator Listener can even generate graphs for existing results, to do so, create a fake plan like the following:

Fake-Test

Run it in GUI or NON-GUI mode, the graphs will be generated.

Ensure you use the same properties configuration you used during the test that generated the results you are graphing.

ND;LR:

With this new Graphs Generator Listener , you can now easily:

  • Generate meaningful and sexy graphs at the end of your test
  • Generate meaningful and sexy graphs for existing results any time you want
  • Output CSVs with computed datas at end of your test if you want to use custom graphs
  • Output CSVs with computed datas for existing results any time you want if you want to use custom graphs
